Products > Shower/Tub Trim > Thermostatic Valve with Built in 3-way Diverter/Volume Control with Shared Function & Shut Off
  • Zoom


Required Item

This Item Requires Purchase of the Following Item(s)

Must choose one. Multiple options.

  • T8534-TRIM-
    Oval Plate with Contempo Short Peg Lever Thermostatic Valve with Short Peg Lever Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T8585-TRIM-
    Rectangle Plate with Hex Cross Thermostatic Valve with Hex Cross Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T7530-TRIM-
    Rectangle Plate with Contempo Low Lever Thermostatic Valve with Contempo Cross Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T7534-TRIM-
    Rectangle Plate with Contempo Short Peg Thermostatic Valve with Contempo Short Peg Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

Features

  • Thermostatic valve with built in diverter/shut off for easier installation and clean appearance
  • Top valve is a three way diverter that consists of inlet for water, three outlets, & a shared function (see J-20689 for operation)
  • Bottom valve is a Thermostatic mixing valve that maintains a constant water temperature automatically, regardless of incoming hot & cold water pressure & temperature. Set valve to desired temperature & no need to adjust further
  • Anti-scald protection
  • Diverter: 1/2" NPT male ports / Thermostatic: 3/4" NPT female ports
  • 12 GPM flow @ 60 PSI
  • Works well with low water pressure

NOTE: THREE WAY DIVERTER CAN BE USED AS TWO WAY DIVERTER BY CAPPING ANY SINGLE PORT OR A VOLUME CONTROL BY CAPPING ANY TWO PORTS.

  • T9757-TRIM-
    Oval Plate with Ball Cross Thermostatic Valve with Ball Cross Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T9534-TRIM-
    Oval Plate with Ball Cross Thermostatic Valve with Regency Peg Lever Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T8532-TRIM-
    Oval Plate with Contempo Cross Thermostatic Valve with Contempo Cross Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

  • T8535-TRIM-
    Oval Plate with Contempo Cross Thermostatic Valve with Short Peg Lever Built-in 2-Way Or 3-Way Diverter/Volume Controls (J-TH34-686 / J-TH34-687 / J-TH34-688 / J-TH34-689)

    • Thermostatic valve with built in diverter/shut off for easier installation and clean appearance
    • Top valve is a three way diverter that consists of inlet for water, three outlets, & a shared function (see J-20689 for operation)
    • Bottom valve is a Thermostatic mixing valve that maintains a constant water temperature automatically, regardless of incoming hot & cold water pressure & temperature. Set valve to desired temperature & no need to adjust further
    • Anti-scald protection
    • Diverter: 1/2" NPT male ports / Thermostatic: 3/4" NPT female ports
    • 12 GPM flow @ 60 PSI
    • Works well with low water pressure

    NOTE: THREE WAY DIVERTER CAN BE USED AS TWO WAY DIVERTER BY CAPPING ANY SINGLE PORT OR A VOLUME CONTROL BY CAPPING ANY TWO PORTS.

Downloads
InfoDownloads:
.DWG files will be loaded onto the website shortly. In the meantime, please contact marketing@jaclo.com if you need a dwg file.

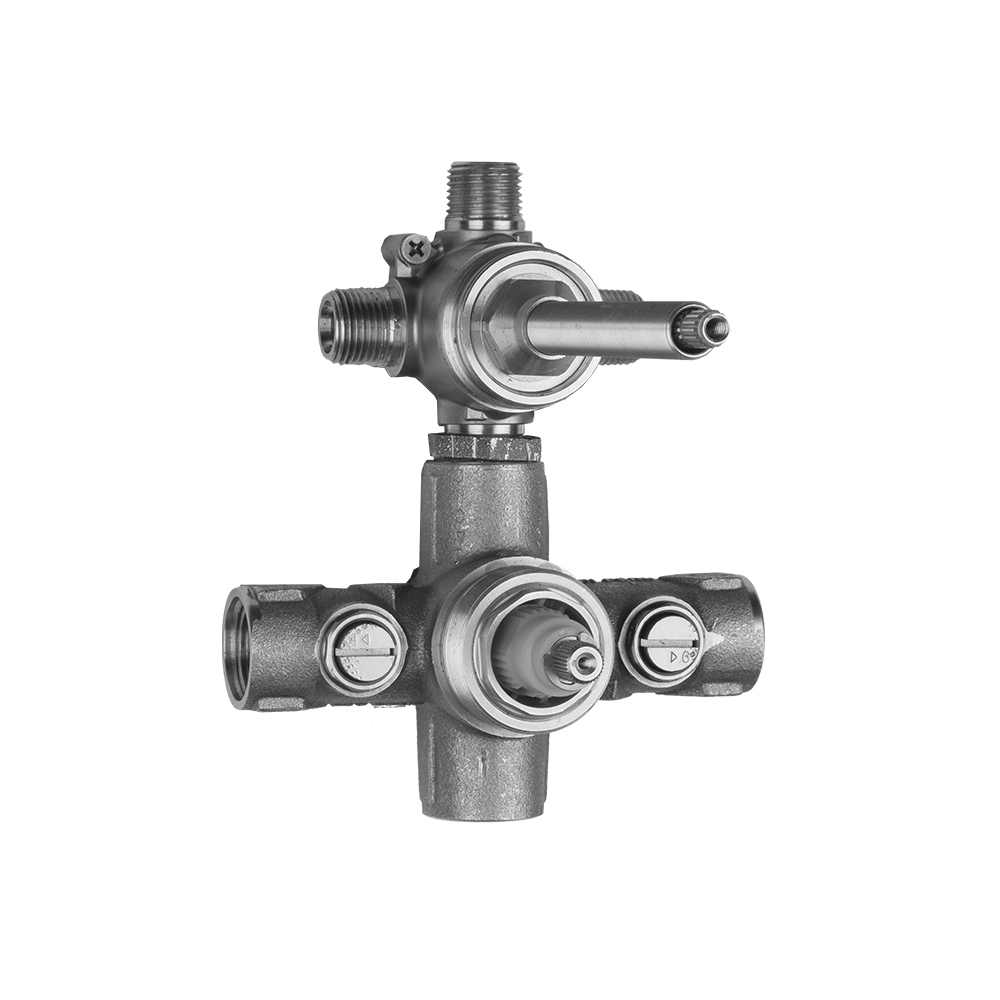

Thermostatic Valve with Built in 3-way Diverter/Volume Control with Shared Function & Shut Off

Model Number: J-TH34-689
Finish: N/A
Estimated List Price: $565

InfoEstimated List Price

The price listed is not necessarily the purchase price.

  • Retail: Price shown is suggested retail price. Please contact your local JACLO dealer for retail pricing.
  • Hospitality: For larger quantity pricing, contact hospitality@jaclo.com.

Thermostatic Valve with Built in 3-way Diverter/Volume Control with Shared Function & Shut Off

Model Number: J-TH34-689
Finish: N/A
Estimated List Price: $565
