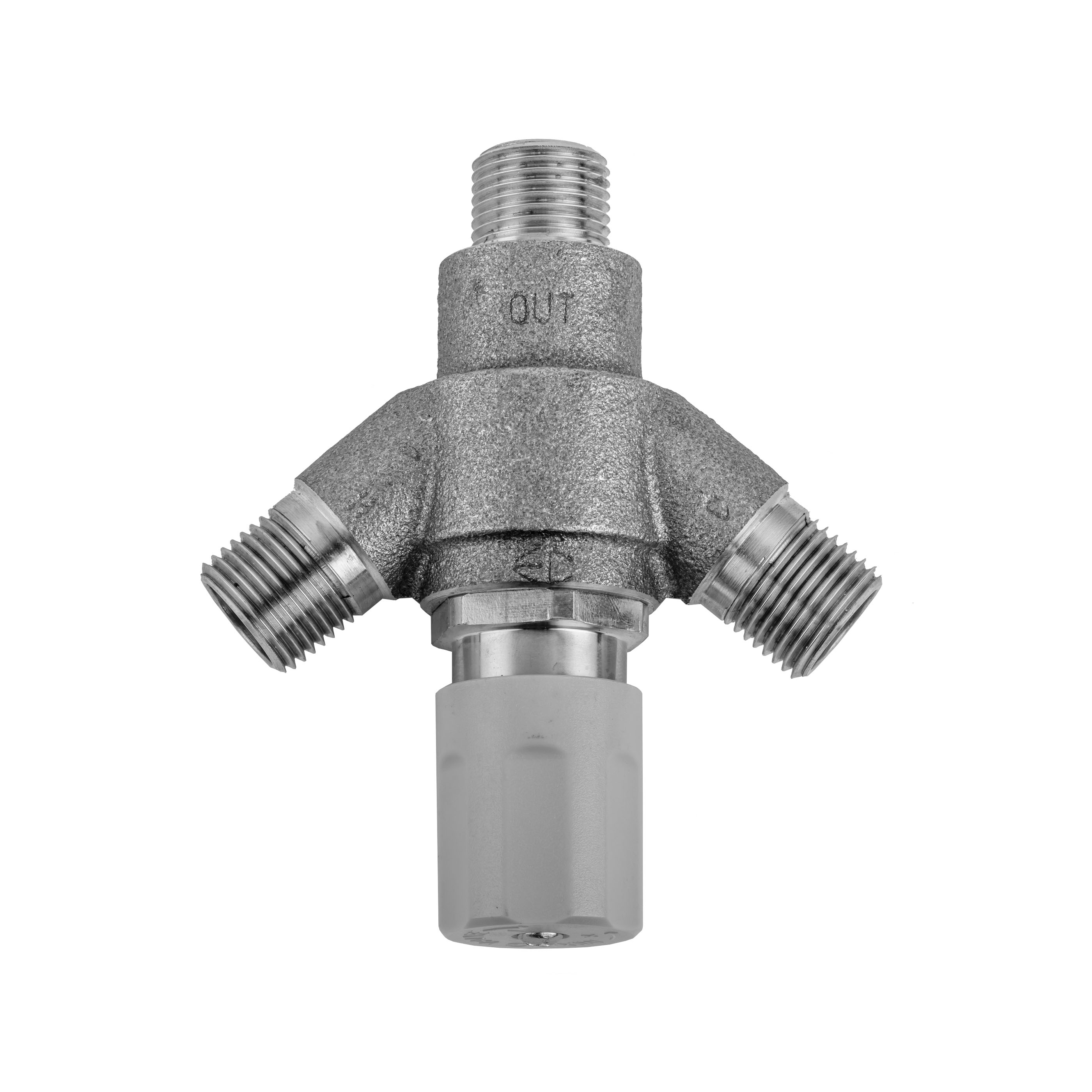

Products > Faucets > Thermostatic Mixing Valve for Sensor Faucet (560-ESF & 884-ESF)
  • Zoom


Features

  •  Mixing Valve to be used with Sensor Faucet or Optional Mixing Valve to be used with wall mounted Tub Fillers
  •  Controls and regulates faucet water temperature
  • Minimum flow rate: 0.5 GPM
  • Pressure loss at minimum flow rate: 0.5 PSI
  • Hot water inlet temperature range: 120-180°F (48.8-82.2°C)
  • Cold water inlet temperature range: 39-84°F (3.9-28.8°C)
  • Outlet temperature range: 80-120°F (26.7-48.8°C)
  • Outlet temperature factory settings: 100.4°F (38°C)
  • Inlet/Outlet Spec: 1/2" NPS threaded male fittings
    •  Mixing Valve to be used with Sensor Faucet or Optional Mixing Valve to be used with wall mounted Tub Fillers
    •  Controls and regulates faucet water temperature
    • Minimum flow rate: 0.5 GPM
    • Pressure loss at minimum flow rate: 0.5 PSI
    • Hot water inlet temperature range: 120-180°F (48.8-82.2°C)
    • Cold water inlet temperature range: 39-84°F (3.9-28.8°C)
    • Outlet temperature range: 80-120°F (26.7-48.8°C)
    • Outlet temperature factory settings: 100.4°F (38°C)
    • Inlet/Outlet Spec: 1/2" NPS threaded male fittings

Downloads
InfoDownloads:
.DWG files will be loaded onto the website shortly. In the meantime, please contact marketing@jaclo.com if you need a dwg file.

Thermostatic Mixing Valve for Sensor Faucet (560-ESF & 884-ESF)

Model Number: J-TP603
Finish: N/A
Estimated List Price: $315

InfoEstimated List Price

The price listed is not necessarily the purchase price.

  • Retail: Price shown is suggested retail price. Please contact your local JACLO dealer for retail pricing.
  • Hospitality: For larger quantity pricing, contact hospitality@jaclo.com.

Thermostatic Mixing Valve for Sensor Faucet (560-ESF & 884-ESF)

Model Number: J-TP603
Finish: N/A
Estimated List Price: $315
