Products > Shower/Tub Trim > 3-way Diverter Valve Volume Control with Shared Function & Shut Off
  • Zoom


Required Item

This Item Requires Purchase of the Following Item(s)

Must choose one. Multiple options.

  • T632-TRIM-
    Contempo Lever with Round Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20687 / J-20688 / J-20689)

  • T631-TRIM-
    Contempo Short Peg Lever with Round Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20687 / J-20688 / J-20689)

  • T685-TRIM-
    Astor Hex Lever Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T459-TRIM-
    Contempo Hub Base Lever with Round Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

Features

  • J-20689 three way diverter consists of inlet for water & three outlets. Valve has shared output capabilities. For example shower and handshower operating at the same time. See table for operations.
  • Valve has built-in volume control to turn water on & off
  • 1/2" NPT male fittings
  • Ceramic cartridge
  • 5" long stem & escutcheon nipple for deep wall installations can be cut to length
  • 12 GPM flow @ 60 PSI

NOTE: THREE WAY DIVERTER CAN BE USED AS TWO WAY DIVERTER BY CAPPING ANY SINGLE PORT OR A VOLUME CONTROL BY CAPPING ANY TWO PORTS.

  • T688-TRIM-
    Astor Ball Cross Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T686-TRIM-
    Astor Hex Cross Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T685-TRIM-
    Astor Hex Lever Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T684-TRIM-
    Astor Smooth Lever Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

    • J-20689 three way diverter consists of inlet for water & three outlets. Valve has shared output capabilities. For example shower and handshower operating at the same time. See table for operations.
    • Valve has built-in volume control to turn water on & off
    • 1/2" NPT male fittings
    • Ceramic cartridge
    • 5" long stem & escutcheon nipple for deep wall installations can be cut to length
    • 12 GPM flow @ 60 PSI

    NOTE: THREE WAY DIVERTER CAN BE USED AS TWO WAY DIVERTER BY CAPPING ANY SINGLE PORT OR A VOLUME CONTROL BY CAPPING ANY TWO PORTS.

Downloads
InfoDownloads:
.DWG files will be loaded onto the website shortly. In the meantime, please contact marketing@jaclo.com if you need a dwg file.

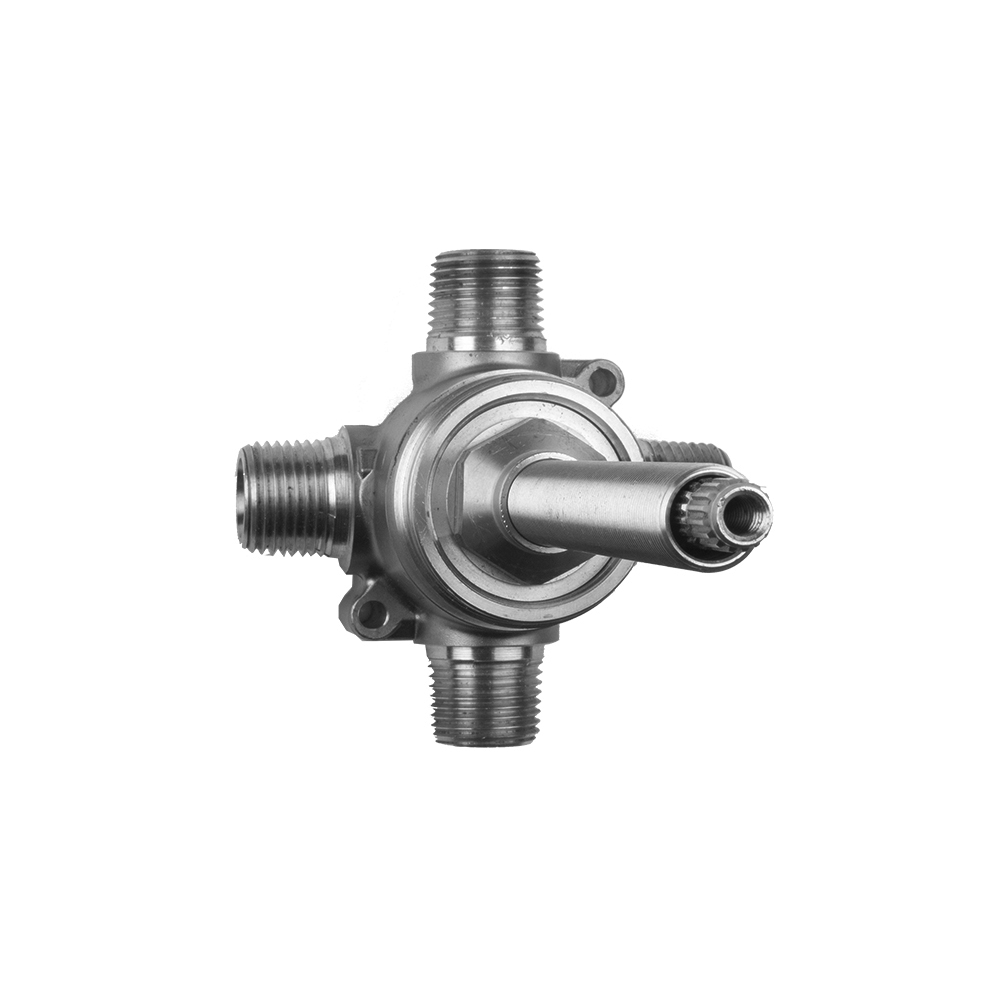

3-way Diverter Valve Volume Control with Shared Function & Shut Off

Model Number: J-20689
Finish: N/A
Estimated List Price: $285

InfoEstimated List Price

The price listed is not necessarily the purchase price.

  • Retail: Price shown is suggested retail price. Please contact your local JACLO dealer for retail pricing.
  • Hospitality: For larger quantity pricing, contact hospitality@jaclo.com.

3-way Diverter Valve Volume Control with Shared Function & Shut Off

Model Number: J-20689
Finish: N/A
Estimated List Price: $285
